VD3-DM-4T4N-S is part of the DK-Lok VD3 Series Diaphragm Valves line. A-Best Industrial Inc. Fittings, Valves, and Tubing is an authorized DK-Lok distributor in San Pedro, CA, and can quote price and lead time, usually the same day.
- Material: Stainless Steel 316
- Orifice: 2.8 mm or 0.110 in
About Diaphragm Valves

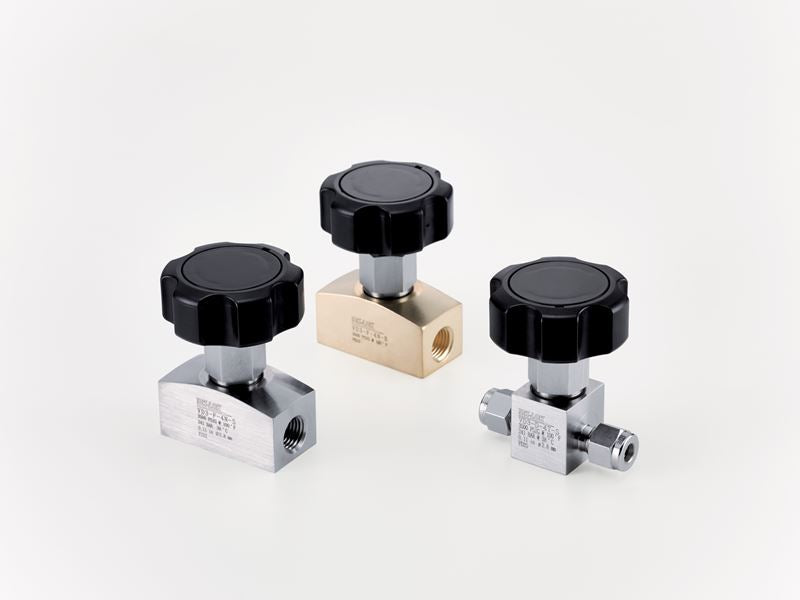

DK-Lok VD3 diaphragm valves are packless shutoff valves for gas control and analyzer sampling. A metal diaphragm seals the stem, so there's no packing to leak or adjust and cycle life is high.
- Pressure: 3,500 psig
- Temperature: -40 to 150°F
- Materials: 316L SS or brass body, Elgiloy diaphragm
- Ends: 1/4" DK-Lok tube or NPT; Cv 0.17
Ratings vary by size, material and end connection. Not sure which one fits your pressure, media and temperature? Call us at 310-833-3353 or email sales@abesttube.com and we'll walk through it with you.

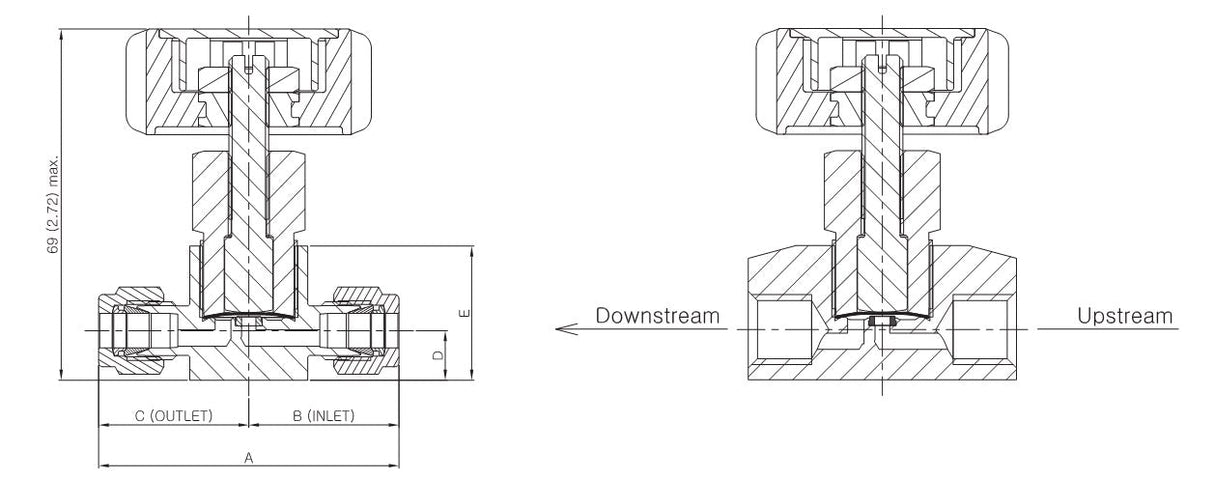

Full dimensions are in the Specifications tab below.
VD3-DM-4T4N-S
-
Item #
-
Category
-
Sub-Series
-
Material
-
Body Plating
-
Seat Material
-
Outlet
-
Inlet
-
Orifice
-
Handle
