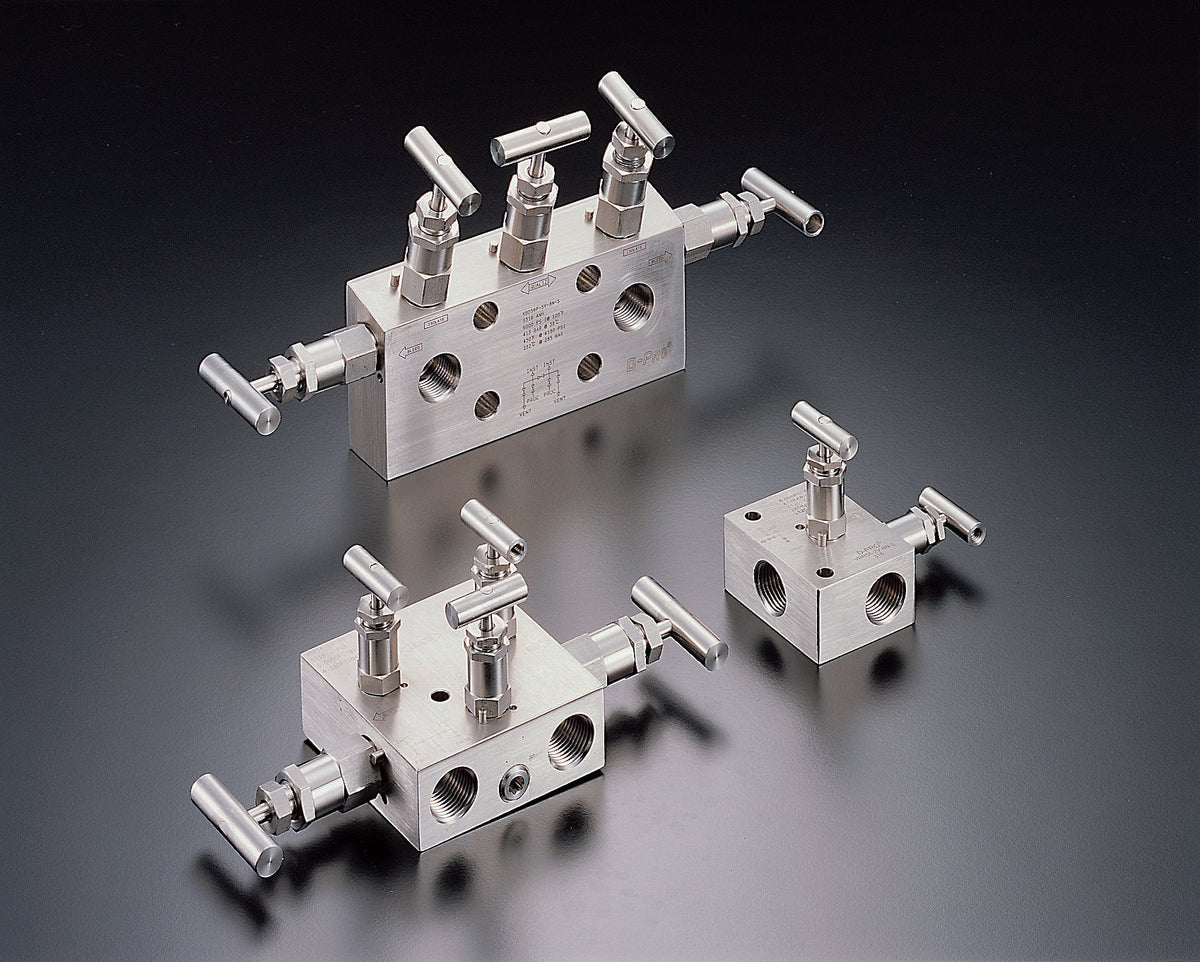

DK-Lok V56 instrument manifolds and V46 gauge root valves isolate, equalize and vent pressure transmitters and gauges. One-piece bodies with a non-rotating stem tip and packing below the threads.
-
Pressure: 6,000 psig at 100°F
-
Packing: PTFE (-65 to 450°F) or Grafoil (to 1,200°F)
-
Materials: 316 SS or carbon steel; NACE option
-
Styles: 2-valve, 3-valve and 5-valve manifolds with 1/2" FNPT or flange (MSS SP-99) ends
- Mounting bolts and accessories in V46/V56 Accessories
Ratings vary by size, material and end connection. Not sure which one fits your pressure, media and temperature? Call us at 310-833-3353 or email sales@abesttube.com and we'll walk through it with you.
