V15C-MF-4N-S
Request a quote
Pricing depends on size, material and quantity. Send us the part number and we'll get back to you with price and lead time, usually the same day.
Couldn't load pickup availability
Customer Support
Customer Support
Real people who care. Give us a call!
310-833-3353
Delivery and Shipping
Delivery and Shipping
Fast shipping & delivery.
Local Business
Local Business
We're a local business, located in San Pedro, CA
V15C-MF-4N-S is part of the DK-Lok V15 Series Needle Valves line. A-Best Industrial Inc. Fittings, Valves, and Tubing is an authorized DK-Lok distributor in San Pedro, CA, and can quote price and lead time, usually the same day.
- Size: 1/4" Male NPT x 1/4" Female NPT
- End connection: Male NPT, Female NPT
- Pattern: Inline
- Series spec: 6.4 mm Orifice
About V15 Series Needle Valves
DK-Lok V15 needle valves have a forged integral bonnet and are rated up to 5,000 psig. Bodies come in 316 SS, brass or Alloy 400. PTFE packing is good to 450°F and PEEK to 600°F. Cv runs from 0.09 to 1.80 depending on orifice.
Need help matching a part number or checking a rating? Call 310-833-3353 or email sales@abesttube.com.

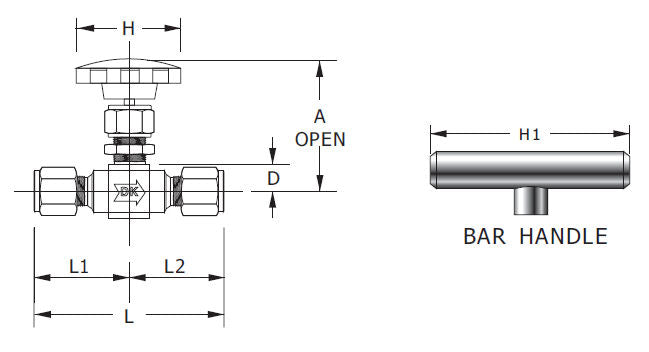

Full dimensions are in the Specifications tab below.
V15C-MF-4N-S
-
Item #
-
Category
-
Sub-Series
-
Valve Pattern
-
End Connection
-
Size Inlet x Outlet
-
Series - Specs
