V76C-D-8T-S
Request a quote
Pricing depends on size, material and quantity. Send us the part number and we'll get back to you with price and lead time, usually the same day.
Couldn't load pickup availability
Customer Support
Customer Support
Real people who care. Give us a call!
310-833-3353
Delivery and Shipping
Delivery and Shipping
Fast shipping & delivery.
Local Business
Local Business
We're a local business, located in San Pedro, CA

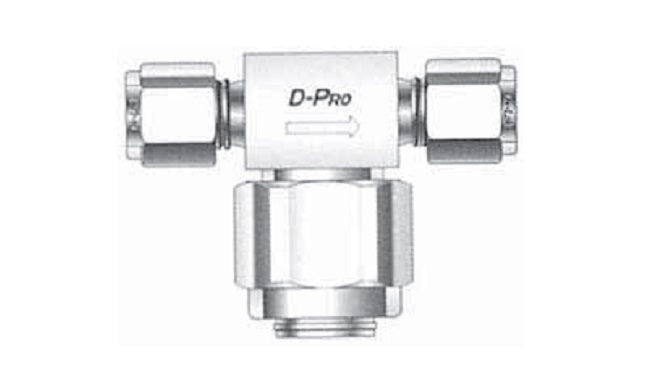

V76C-D-8T-S is part of the DK-Lok V76 Series Tee Filters line. A-Best Industrial Inc. Fittings, Valves, and Tubing is an authorized DK-Lok distributor in San Pedro, CA, and can quote price and lead time, usually the same day.
- Material: Stainless Steel 316
- Size: 1/2" Dk-Lok
- Orifice: 0.250 in or 6.4 mm

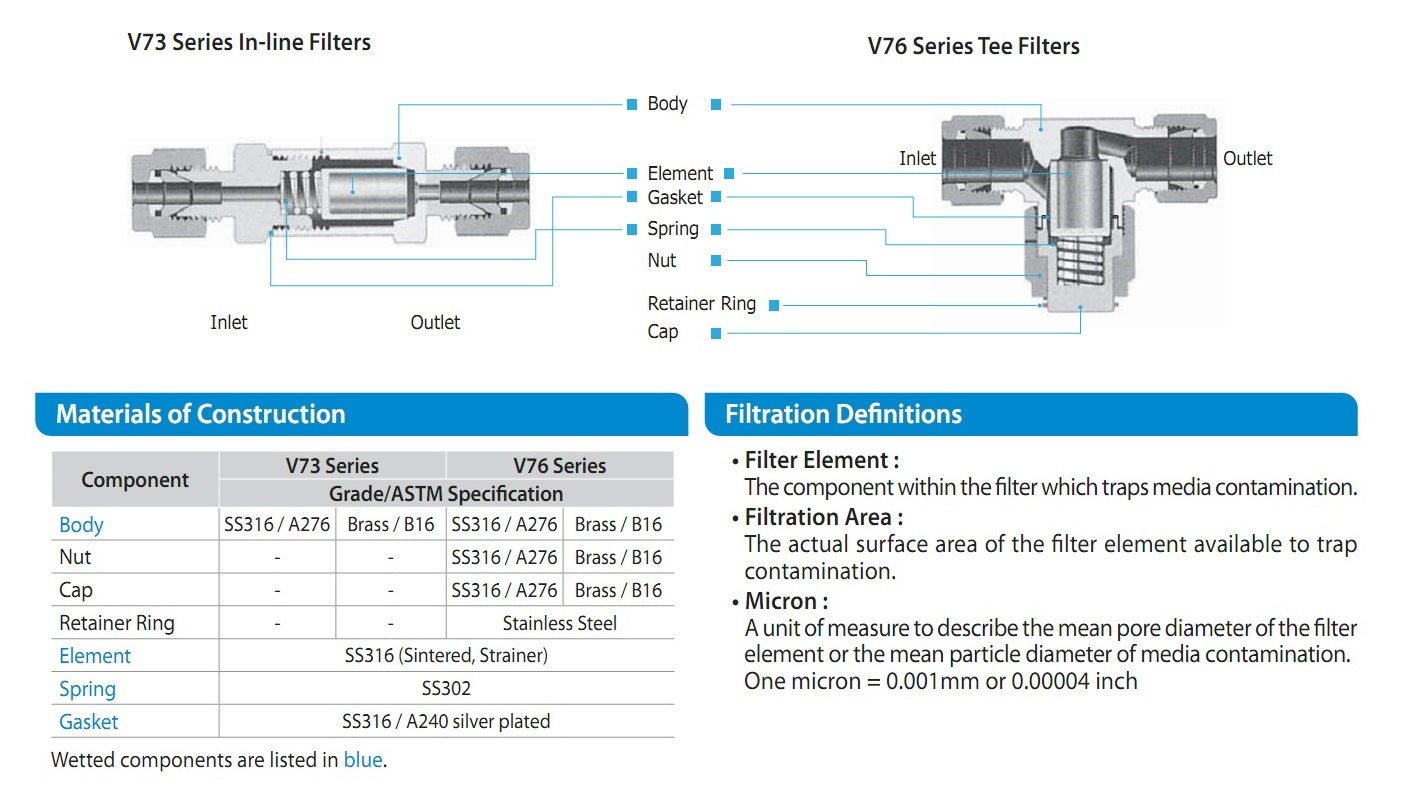

About V76 Series Tee Filters

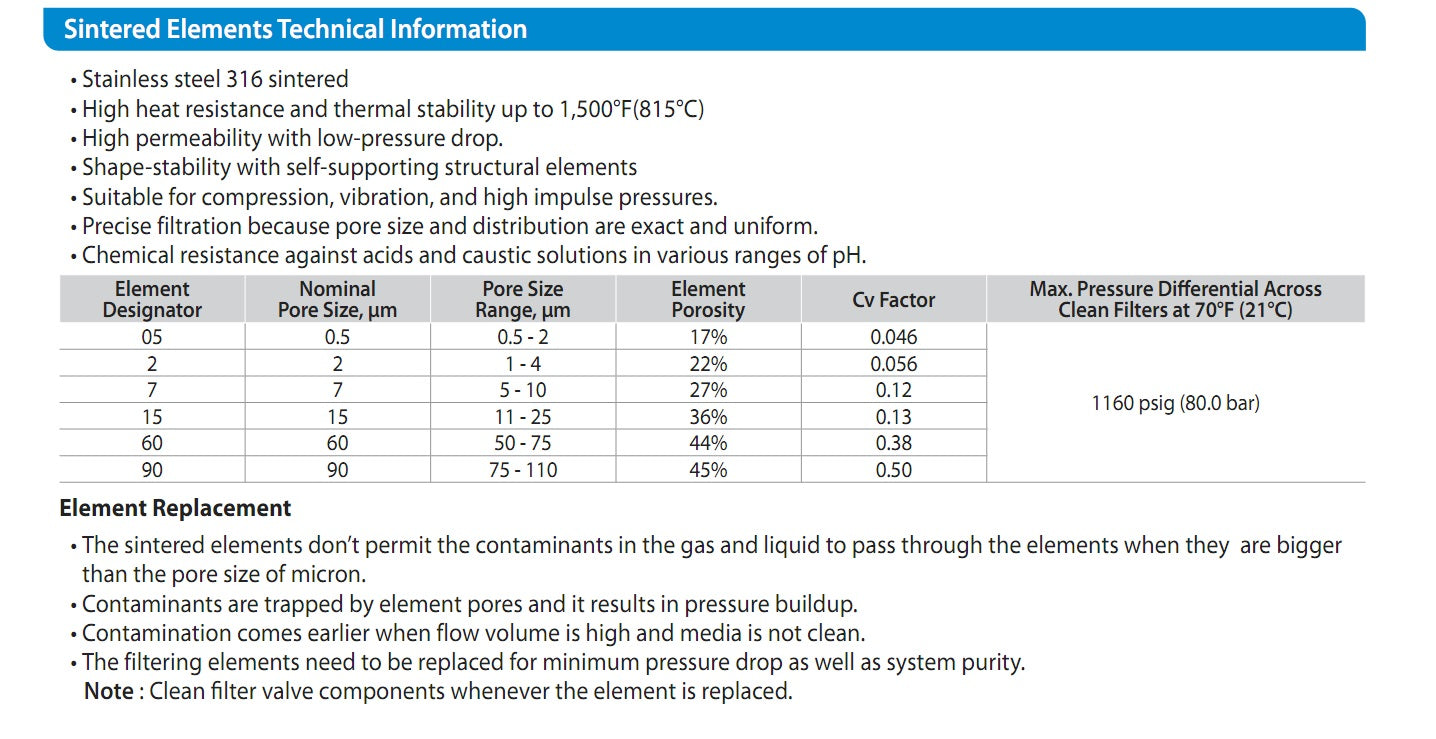

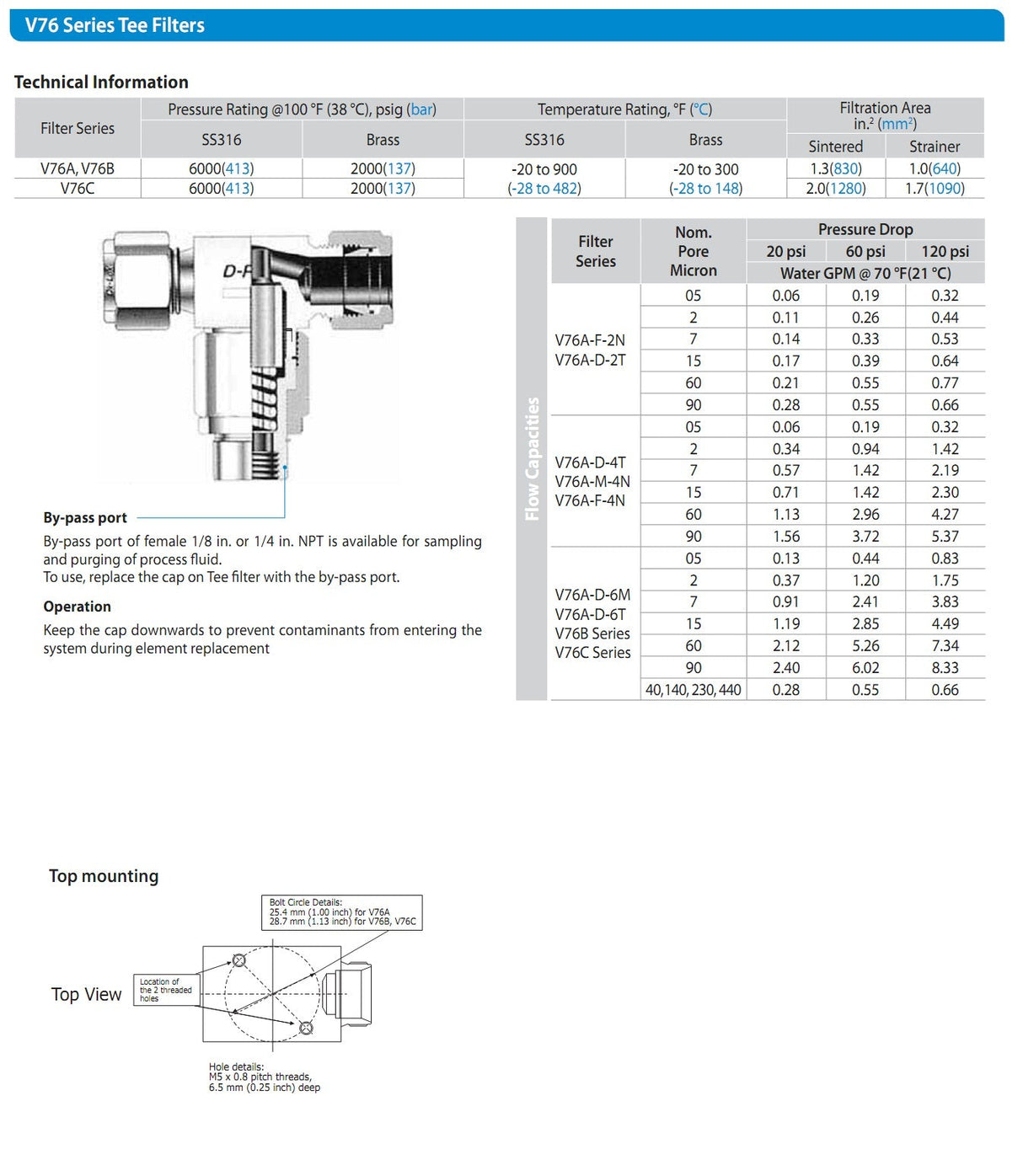

DK-Lok V76 tee filters are rated 6,000 psig. The element changes without removing the filter from the line, and an optional bypass lets you sample or purge. 316 SS or brass bodies to 400°F. Elements from 0.5 to 90 micron.
Need help matching a part number or checking a rating? Call 310-833-3353 or email sales@abesttube.com.

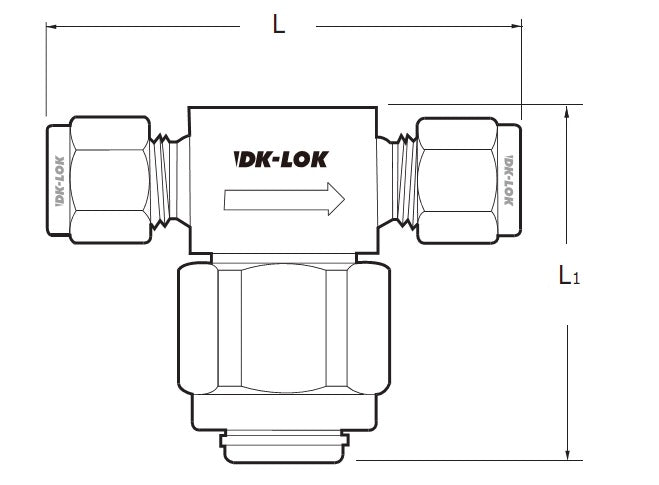

Full dimensions are in the Specifications tab below.
V76C-D-8T-S
-
Item #
-
Category
-
Sub-Series
-
Material
-
L
-
l
-
Orifice
-
Size Inlet x Outlet
-
H - Hex
