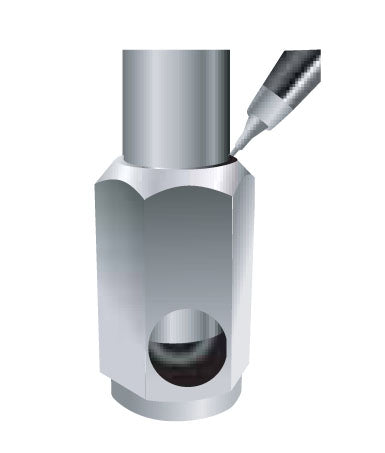

DTMZ-25M-C-L625

DTMZ-25M-C-L625 is part of the DK-Lok DTM-Z Ferrule Tube Depth Marking Tools Metric line. A-Best Industrial Inc. Fittings, Valves, and Tubing is an authorized DK-Lok distributor in San Pedro, CA, and can quote price and lead time, usually the same day.

• Material: Alloy 625
• Tube O.D.: 25.0 mm

About Tools

Tube Installation Tools

A good tube fitting connection starts with a clean cut, a clean end and a smooth bend. We stock the tools to do it right on stainless steel tubing:

• RIDGID heavy-duty tube benders for 1/4", 3/8" and 1/2" stainless steel instrumentation tubing. Made for stainless and other hard tubing, they bend up to 180° without kinking or flattening the tube.
• Deburring tools to remove inside and outside burrs after cutting, so the ferrules seat properly and chips stay out of your system.
• RIDGID tube cutters for stainless steel tubing that make square, clean cuts on 3/16" to 1-1/8" tubing, ready for DK-Lok tube fittings.
• GRIP-IT TOOL for 1/8", 1/4", 3/8", 1/2", 3/4" and 1" OD tubing. It grips the stainless steel tubing while you cut it with a tube cutter, so the tube doesn't spin in your hand.
• Fitting Tool for holding stainless steel tube fittings from 1/16" to 1/2" steady while you work on them.
• Pre-swaging tools to preset the nut and ferrules onto the tube before final installation. Handy for larger tube sizes and tight spots where it's hard to get a wrench on the fitting.
• Gap inspection gauges to confirm each fitting was pulled up enough. If the gauge fits between the nut and the body, the fitting needs more tightening.

1/4" Tube Bender
5/8" bend radius

3/8" Tube Bender
15/16" bend radius

1/2" Tube Bender
1-1/2" bend radius

Stainless Tube Cutter
3/16" to 1-1/8" tubing

GRIP-IT TOOL

GRIP-IT TOOL
1/8" to 1" OD tubing

Lock the GRIP-IT TOOL onto the tube, then run your tube cutter. The tube stays put, so you get a square cut without fighting a spinning tube or scratching your hands.

Fitting Tool

The Fitting Tool holds stainless steel tube fittings from 1/16" to 1/2" steady, so they don't turn or slip while you work on them.

Deburring, Pre-Swaging and Gap Inspection

Deburring Tool
Clean the ID and OD after every cut

Pre-Swaging Tool
Preset the nut and ferrules on the tube

Gap Inspection Gauge
Verify every fitting is pulled up

New to tube fitting installation? Ask about our free Safety training course for new and existing customers, covering tube fitting installation and tube bending. Need tubing too? See our Tubing page. Call 310-833-3353 or email sales@abesttube.com for pricing and help picking the right tool.

Full dimensions are in the Specifications tab below.
