Swapping a pressure gauge is one of the first jobs a new tech gets handed, and it's one of the easiest ways to get hurt. The gauge is small, the job feels routine, and that's exactly when people skip steps. I've seen gauges blown off a line and process fluid sprayed across a face because someone trusted a valve they never checked. Here's how I change a gauge, start to finish.
Start With the Right Isolation Valve

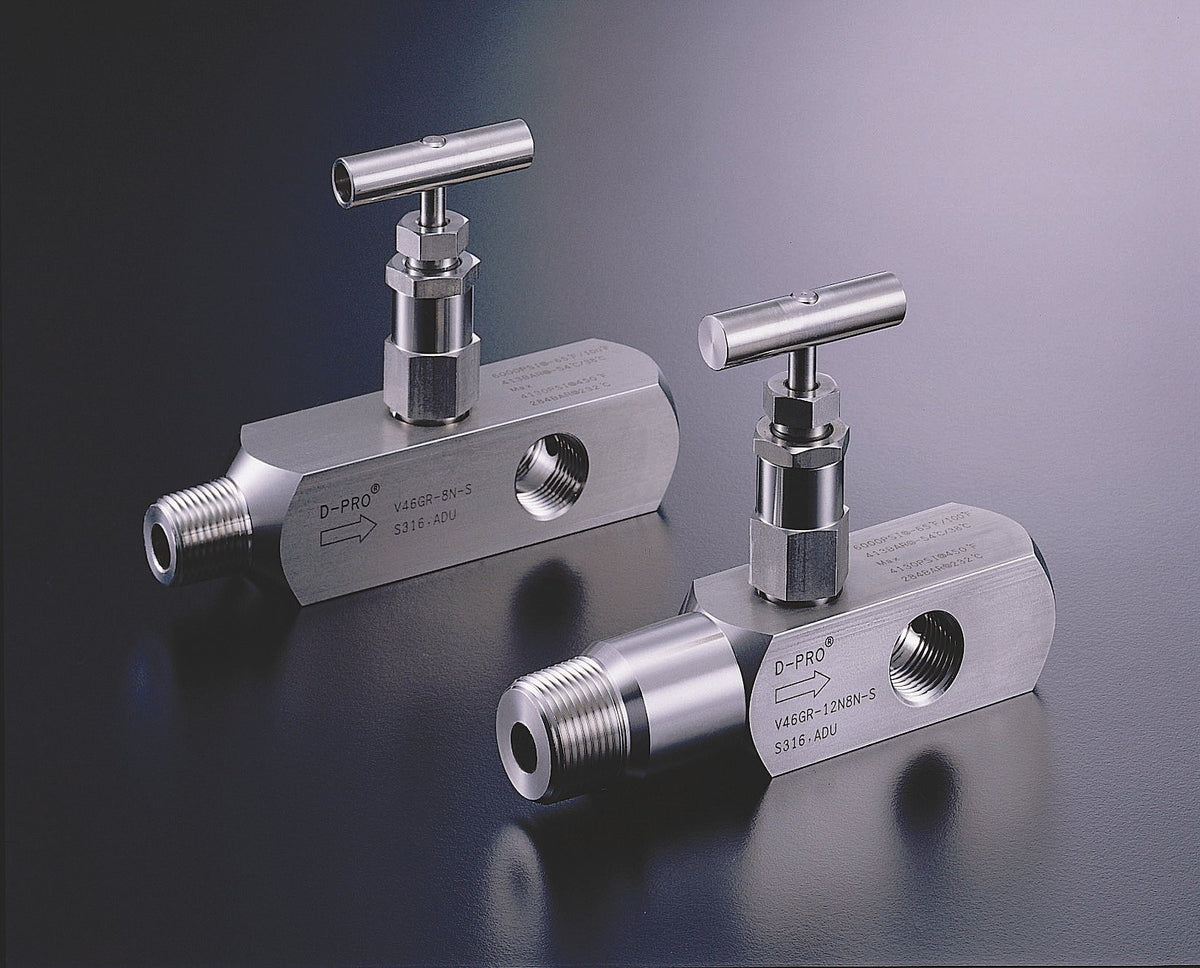

You can't swap a gauge safely if there's nothing between it and the process. Every gauge should sit behind a gauge root valve or needle valve so it can be isolated without shutting down the line. A root valve with a bleed or vent port is even better, because it lets you relieve trapped pressure in a controlled way instead of cracking a thread.
If you find a gauge threaded straight into a line with no valve, don't improvise. Plan the change-out for a shutdown and add an isolation valve while you're in there. Browse our needle valves for options.
Know What's in the Line
Before you touch anything, find out the media, the pressure and the temperature. Steam, hot oil, caustic and toxic gases all change how you bleed down and what PPE you need. Follow your site's lockout/tagout and line-break procedures. If the job needs a permit, get it first.
Isolate, Then Bleed, Then Verify
- Close the root valve. Snug is enough on a needle valve. Over-torquing it damages the stem tip and seat, and then it won't hold next time.
- Bleed the trapped pressure. Open the bleed or vent port slowly, pointed away from you and anyone nearby. Have a rag or catch container ready for liquid.
- Verify zero. Watch the old gauge return to zero and stay there. If it creeps back up, the root valve is passing. Stop and isolate further upstream.
Don't treat a gauge reading zero as proof by itself. A damaged gauge can stick at zero. Make sure the bleed port is actually open and nothing is coming out.
Remove the Old Gauge the Right Way
Put a wrench on the wrench flats of the gauge socket, never on the case. Twisting by the case can tear the Bourdon tube or crack the case. Back it out a turn at a time and watch the threads. If anything hisses or weeps, stop, tighten back up and recheck your isolation.
Install the New Gauge
Match the range, connection size and mounting to the old gauge, or better yet to what the service really needs. Clean the female threads. On NPT gauge connections, use a thread sealant or PTFE tape and leave the first thread bare so nothing ends up in the gauge port. Hold the socket flats while you tighten.
Before you open anything, close the bleed port. Then open the root valve slowly. A sudden slug of pressure can spike the pointer and damage a brand-new gauge. Check the connection for leaks once it's under pressure.
Train the Habit
The steps are simple. What keeps people safe is doing them every time, even on a 2" gauge on a utility air line. A-Best Industrial Inc. Fittings, Valves, and Tubing offers a free Safety training course for new and existing customers, and isolation and line-break basics are exactly the kind of thing worth covering with a new crew.
