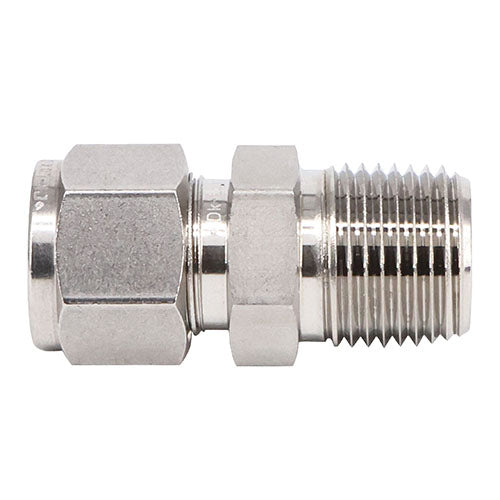

A male connector is one of the most common tube fittings in any plant. One end threads into an NPT port on a valve, gauge, transmitter or pump. The other end takes the tubing. It looks simple, and that's why it gets rushed. When I chase a leak on an instrument line, the pipe thread side of a male connector is near the top of my list.
Know Which End Seals How
The tube end seals with the ferrules gripping the tube. It needs no sealant, no tape and no dope. The NPT end seals because the tapered threads wedge together, and the sealant fills the small spiral gap left between them. Tape or paste never belongs near the ferrules, the nut threads or the tube.
Check the Port and the Threads First
Clean old tape, dried sealant and debris out of the female port with a pick and a brush. If the threads are galled, cracked or chewed up, a new fitting won't fix it. Confirm the thread size and type, too. NPT and other tapered or parallel threads can look close enough to start, but they won't seal together. Check the connector's male threads for nicks as well.
Apply Sealant the Right Way
Whether you use PTFE tape or paste, leave the first thread bare. That keeps shreds of tape or paste out of the system, where they can foul a valve seat or an instrument.
- Tape: Wrap in the same direction as the threads so tightening doesn't unravel it. Two or three wraps is usually plenty.
- Paste: Apply a thin, even coat to the male threads only, starting past the first thread.
On stainless-to-stainless threads, galling is a real risk. A sealant made for stainless, like nickel-infused Teflon tape, helps the threads seat without seizing. See our Anti-Seize Technology page for more options.
Tighten by Feel, Not by Force
Thread it in hand-tight, then use a wrench on the hex for a couple more turns, following your site practice. Tapered threads get tighter the further they go, and cranking past snug can crack a port or gall the threads. Don't back a pipe thread off to line something up. Plan the orientation before you start.
Making up assemblies on the bench? The Fitting Tool holds stainless tube fittings from 1/16" to 1/2" steady while you work on them. It's on our tools page.
Then Make Up the Tube End
Cut the tube square, deburr inside and out, bottom it in the body, and pull the nut up per the manufacturer's instructions. Check the make-up with a gap inspection gauge before the line sees pressure.
Already running Swagelok or Parker? DK-Lok tube fittings are 100% interchangeable and intermixable with Swagelok and Parker A-Lok. DK-Lok tested intermixing with Swagelok to ASTM F1387-99(2005), witnessed by TÜV Rheinland, using 14 combinations of DK-Lok and Swagelok nuts, front ferrules, back ferrules and bodies in 1/4" through 1" OD. Every combination passed 100% of the testing, including proof, impulse, vibration, thermal cycling and hydrostatic burst, with "No failure observed." DK-Lok also states in writing that its two-ferrule fittings are totally intermixable and interchangeable with Parker A-Lok, for same-size, same-material components assembled per the DK-Lok catalog. Read the ASTM F1387 test report and the Parker A-Lok interchangeability letter, or browse our tube fittings.
Leak Test the NPT Joint, Not Just the Tube End
Once the line is pressurized per your procedure, check both ends of every male connector you touched. Techs often check the tube nut and walk right past the pipe threads, and that's where the weep usually hides. Apply Gator Leak Detector all the way around the joint where the connector meets the port, then around the tube nut, and watch for bubbles or foam.
If the NPT side leaks, isolate and depressurize first. Never tighten a fitting under pressure. If a little more snugging doesn't stop it, take it apart, clean both sets of threads, reseal and reinstall rather than forcing it tighter.
