After twenty years behind a parts counter and out in the field, I can tell you the most common reason a hose assembly gets built twice: somebody guessed. A guessed length, a guessed thread, a guessed pressure. The hose shows up, doesn't fit or doesn't hold, and the line stays down another day.
You can avoid that. Walk in or call with these seven details and your hose will fit the first time.
1. Size (Inside Diameter)
Hose is sized by inside diameter, not outside. If you're replacing an old hose, look for the printed layline on the cover; it usually lists size, type and pressure rating. If the print is worn off, bring the old hose in. We'd rather measure it ourselves than have you guess.
2. Temperature

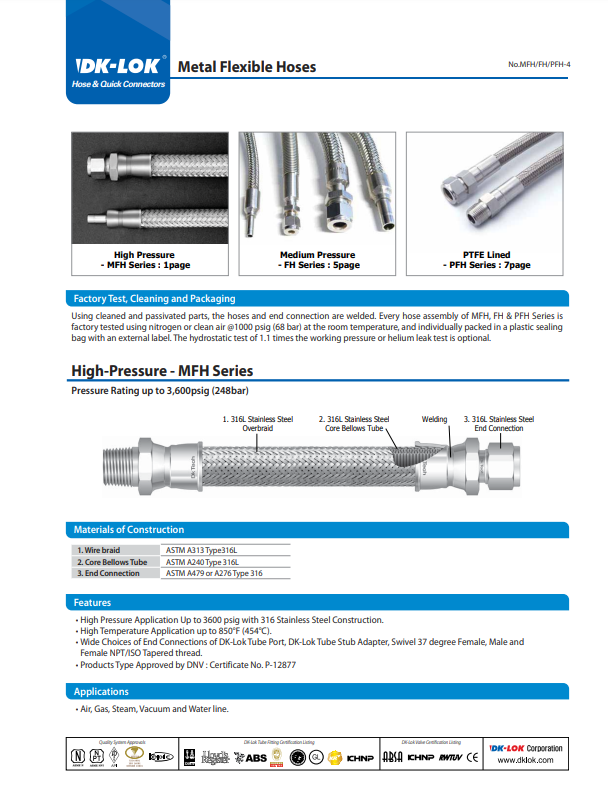

Tell us the temperature of the media inside the hose and the temperature around it. A hose running near a steam line, an exhaust or a hot process vessel sees heat from the outside too. Rubber and thermoplastic hoses have limits; stainless metal hose handles much higher heat.
3. Application
Where is the hose going and how does it move? A hose that flexes all day on a machine needs different construction than one that sits still between two fixed points. Mention vibration, abrasion against steel, sunlight exposure and whether people work near it.
4. Media
Name exactly what flows through it: air, water, hydraulic oil, nitrogen, steam, a specific chemical, natural gas. The tube material and the end fittings both have to be compatible. If it's a chemical, bring the name or the SDS. For CNG, we build those hoses off-site at our CNG certified facility, so let us know up front.
5. Pressure
Give us the normal working pressure and any spikes or surges. Pump starts, fast-closing valves and pressure washers can hit a hose much harder than the gauge shows at rest. The rated working pressure of the whole assembly is limited by its weakest part, hose or fitting, so we size both together.
6. Ends
This is where most mistakes happen. NPT, JIC, SAE O-ring boss, BSPP, metric and compression tube ends can look alike at a glance. Bring the mating part, or measure the thread and note the gender (male or female) and whether it seals on threads, a flare or an O-ring. Also tell us if one end needs to swivel.
For low-pressure air and water lines, push-on hose fittings can be a simple, clamp-free option. They are not a substitute for a crimped assembly on higher-pressure service.
If one end ties into a stainless tube fitting, DK-Lok tube fittings have been tested for interchangeability and intermixability with Swagelok. DK-Lok's ASTM F1387 third-party test report, witnessed by TÜV Rheinland, covers 14 intermixed combinations of nuts, ferrules and bodies in 1/4" through 1" OD, with "No failure observed," and DK-Lok backs same-size, same-material, properly assembled intermixed connections with a written guarantee.
7. Length and Routing
Measure overall length end to end, including the fittings, and tell us how the hose will be routed. A hose that's too short gets stretched tight when it pressurizes; hose length can change slightly under pressure. If both ends have orientation, like two elbows that must point a certain way, mark that on a sketch or a photo from your phone.
A Word on Safety
A hose assembly stores energy. When it fails, it can whip or spray. Never re-use crimped fittings, never mix components from different hose manufacturers in one assembly, and replace a hose that shows cover damage, leaks or kinks. If your crew wants a refresher, our free Safety training course is open to new and existing customers.
We Build While You Wait
A-Best Industrial Inc. Fittings, Valves, and Tubing builds hose assemblies while you wait at our San Pedro shop. Bring the old hose or these seven details and we'll get you back running. See our hose assembly services, call 310-833-3353 or email sales@abesttube.com. We're open Monday–Friday, 8:00 AM–5:00 PM Pacific, with after-hours emergency service.
