DK-Lok two-ferrule compression tube fittings for instrumentation, process and hydraulic lines. A body, front ferrule, back ferrule and nut make a gas-tight seal that holds up to vibration, vacuum and pressure impulse, with no torque passed to the tube. They're gaugeable at installation and can be remade.
-
Sizes: 1/16" to 2" OD and 2 to 50 mm OD
-
Materials: 316 SS, brass, carbon steel, duplex and super duplex, plus Alloy 400, 600, 625, 825, C276, Alloy 20 and titanium
-

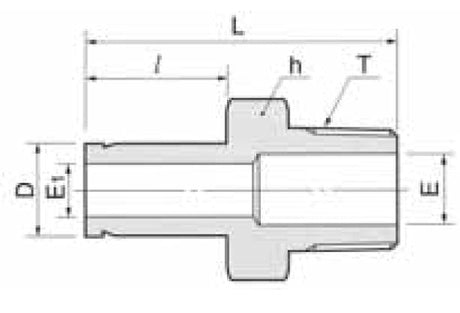

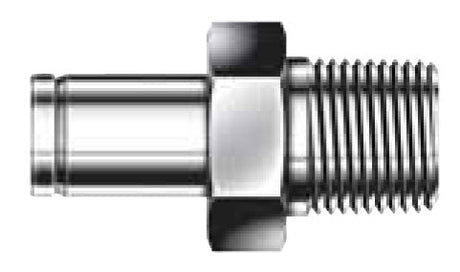

Configurations: unions, elbows, tees, crosses, bulkheads, male and female connectors, weld ends, plugs and caps
-
Pressure: set by the tubing; see the DK-Lok tubing data tables for your OD and wall
Ratings vary by size, material and end connection. Not sure which one fits your pressure, media and temperature? Call us at 310-833-3353 or email sales@abesttube.com and we'll walk through it with you.
