  • Item #
    DLBSZ-12-12UP-L825
  • Category
    Compression Tube Fittings
  • Sub-Category
    Tube to Positionable Straight Threads
  • Series

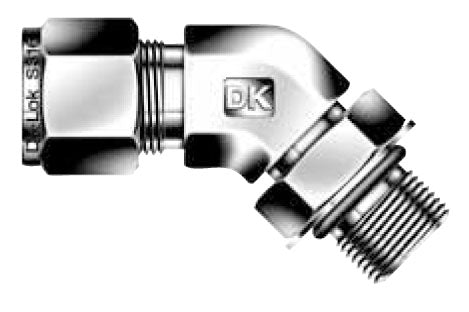

    DLBS-UP Positionable 45 Degree SAE Male Elbow Tube Fittings
  • Sub-Series
    DLBS-UP-Z Positionable 45 Degree SAE Male Elbow Tube Fittings
  • Material
    Alloy 825

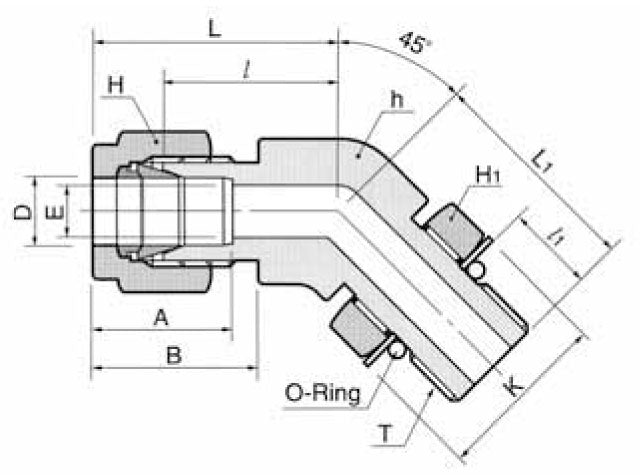

  • E - Min.
    15.7 mm
  • h - Width Across Flat
    1-1/8 in or 28.6 mm
  • T - Thread Size
    1 1/16-12
  • D - Tube O.D.
    3/4 in or 19.1 mm
  • L
    39.9 mm
